- What is the wastewater heat heat pump system?
- It is an energy saving system that has a good performance and is efficient with the application of a half-enclosed screw type compressor, which utilizes a low heat source (10~30℃) of wastewater thrown away after using, produces high-temperature hot water (60~75℃) and provides the hot water tank.
- System schematic diagram
system diagram -

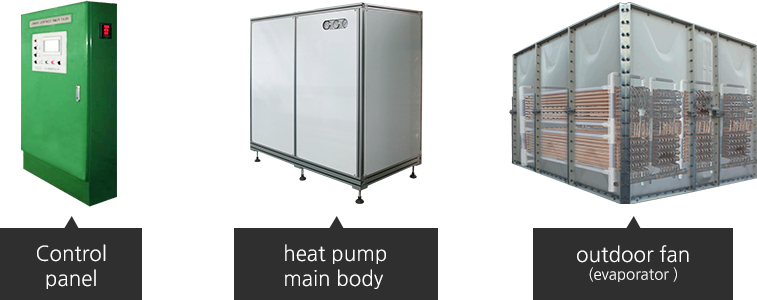

- Product features
special features of goods -
- Latest technological know-how exclusive [Sinwoo Integral Energy]
- Smart phone remote control management system is applied to all 2015 models
so you can monitor and check abnormal conditions in real time using smart phone anytime, anywhere.
Touch-type PLC auto control system that is convenient to use

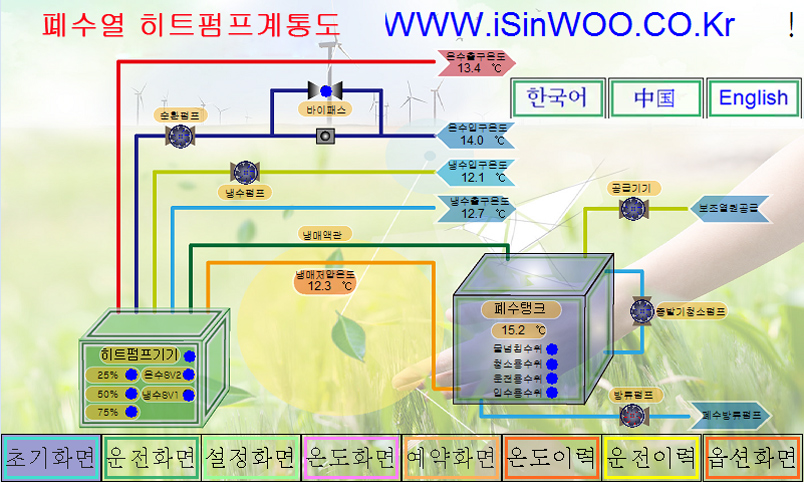

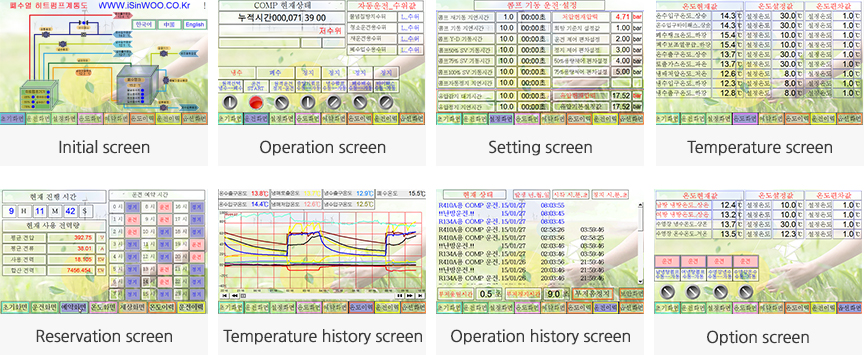

시스템화면 설명 ① Initial screen You can easily and accurately observe the operating condition of equipment through the system schematic diagram. ② Operation screen You can control the operation and observe the operation condition. ③ Setting screen You can set the setting for running operation of the compressor and control compression value. ④ Temperature screen You can monitor and control predetermined value (deviation) and present value of auto control temperature setting list. ⑤ Reservation screen You can set a time for reserved operation, and you can monitor wattage consumed in real time. ⑥ Temperature history screen You can easily and accurately observe the changes of temperature of the equipment in a graph. ⑦ Operation history screen Accurate inspection of equipment and taking measures are possible by managing history on the operation condition and occurrence of abnormality. ⑧ Option screen you can add optional functions according to the installment environment, change predetermined value and control. - Invention patent exclusively for [Sinwoo Integral Energy]
-
- ① Invention patent no. 10-1151630 application of wastewater circulation auto cleaning evaporator device
- ② Reduces energy of wastewater heat heat pump up to 50~80%
- 자Test operation of auto cleaning evaporator device
- As a result of observing wastewater navigating after mixing some inks, it circulated 100% in 0 ~ 8 seconds
| Company | Cleaning of Evaporator (Uncovered pipe coil type) |
Wastewater circulation system | Features (strengths/weaknesses) |
|---|---|---|---|
| Sinwoo | Automatic (own invention patent) | Wastewater circulation and auto cleaning method |
- Maximizing convenience and efficiency with one-time-in-a-day auto cleaning - No wastewater odor (gas) - Extending life span of bronze pipe of evaporator |
| Other company | Manual |
- wastewater circulation method - Ring blower bubble generation method |
- Inconvenient management and low inefficiency with manual cleaning - Occurrence of wastewater odor (gas) - Short life span of bronze pipe of evaporator |
- Strengths of product
advantage - Wastewater heat heat pump has strengths as below.
-
It is highly economic since it uses wastewater that is thrown away after using
-
Adoption of wastewater circulation auto cleaning evaporator
- Extension of life span of evaporator / increase of efficiency of heater pump /
convenient auto cleaning for evaporator / reduction of wastewater odor -
- PLC auto control system and touch screen which are convenient to use
- Applied with smart phone remote control management system
- Applicability
a range of application - Wastewater heat heat pump is applicable on following cases
-
Recreation and leisure industry
- Bathhouse / Sauna
- Golf course / Gym
-
Accommodations
- Hotel / resorts
- Motel / pension
-
Industrial complex and industrial facilities
- Dye house
| Classification | SW-40S | SW-50S | SW-60S | SW-80S | |
|---|---|---|---|---|---|
| Compressor | type | Half-enclosed screw | Half-enclosed screw | Half-enclosed screw | Half-enclosed screw |
| Power consumption(Kw) | 36/27 | 45/34 | 54/41 | 72/54 | |
| Type of air movement | Y/△ | Y/△ | Y/△ | Y/△ | |
| Maximum operating current(A) | 79 | 99 | 116 | 169 | |
| Protective device | INT69RCY | INT69RCY | INT69RCY | INT69RCY | |
| Caloric Value | Maximum(Kcalℓ/hr) | 123,840 | 154,800 | 185,760 | 247,680 |
| Minimum(Kcalℓ/hr) | 92,880 | 116,960 | 141,040 | 185,760 | |
| Hot Water Output(△t30℃) |
Maximum(ℓ/hr) | 4,085 | 5,120 | 6,127 | 9,170 |
| Minimum(ℓ/hr) | 3,268 | 4,085 | 4,902 | 6,536 | |
| Condenser | Type | Plate type heat exchanger | Plate type heat exchanger | Plate type heat exchanger | Plate type heat exchanger |
| Area of electric heat(㎡) | 10.77 | 12.97 | 17.36 | 20.66 | |
| Evaporator | Type | Uncovered pipe coil | Uncovered pipe coil | Uncovered pipe coil | Uncovered pipe coil |
| Size(15A) | 501M | 626M | 752M | 1,002M | |
| Hot Water Pump | Type | For hot water circulation | For hot water circulation | For hot water circulation | For hot water circulation |
| Power consumption(Kw) | 0.25 | 0.25 | 0.25 | 0.6 | |
| Drain Pump | Type | Underwater for drainage | Underwater for drainage | Underwater for drainage | Underwater for drainage |
| Power consumption(Kw) | 1.50 | 1.50 | 1.50 | 1.50 | |
| Cleaning the Pump | Type | For wastewater circulation | For wastewater circulation | For wastewater circulation | For wastewater circulation |
| Power consumption(Kw) | 1.50 | 1.50 | 1.50 | 1.50 | |
| Waste Water Tank | Material | SMC heat retaining product | SMC heat retaining product | SMC heat retaining product | SMC heat retaining product |
| Volume(Ton) | 7.50 | 10.00 | 12.50 | 12.50 | |
| Hot Water Pipe | Inlet/outlet(A) | 40 | 40 | 50 | 50 |
| Material | Bronze pipe | Bronze pipe | Bronze pipe | Bronze pipe | |
| Cold Water Pipe | Inlet/outlet(A) | 40 | 50 | 65 | 65 |
| Material | PVC(VG1) | PVC(VG1) | PVC(VG1) | PVC(VG1) | |
| Product Standard | Length(L) | 1,500 | 1,500 | 1,700 | 1,700 |
| Width(W) | 1,380 | 1,380 | 1,380 | 1,380 | |
| High(H) | 800 | 800 | 1,000 | 1,000 | |
| Power Product Standard |
380V 3-phrase 4-wire system 60Hz (3-phrase 3-wire system available upon request | ||||
* The specifications of the above product may be changed without prior notice for the improvement of quality and performance.
| Classification | |||
|---|---|---|---|
| SW-40S | SW-50S | SW-60S | SW-80S |
| Compressor | |||
| type | |||
| Half-enclosed screw | Half-enclosed screw | Half-enclosed screw | Half-enclosed screw |
| Power consumption(Kw) | |||
| 36/27 | 45/34 | 54/41 | 72/54 |
| Type of air movement | |||
| Y/△ | Y/△ | Y/△ | Y/△ |
| Maximum operating current(A) | |||
| 79 | 99 | 116 | 169 |
| Protective device | |||
| INT69RCY | INT69RCY | INT69RCY | INT69RCY |
| Caloric Value | |||
| Maximum(Kcalℓ/hr) | |||
| 123,840 | 154,800 | 185,760 | 247,680 |
| Minimum(Kcalℓ/hr) | |||
| 92,880 | 116,960 | 141,040 | 185,760 |
| Hot Water Output(△t30℃) | |||
| Maximum(ℓ/hr) | |||
| 4,085 | 5,120 | 6,127 | 9,170 |
| Minimum(ℓ/hr) | |||
| 3,268 | 4,085 | 4,902 | 6,536 |
| Condenser | |||
| Type | |||
| Plate type heat exchanger | Plate type heat exchanger | Plate type heat exchanger | Plate type heat exchanger |
| Area of electric heat(㎡) | |||
| 10.77 | 12.97 | 17.36 | 20.66 |
| Evaporator | |||
| Type | |||
| Uncovered pipe coil | Uncovered pipe coil | Uncovered pipe coil | Uncovered pipe coil |
| Size(15A) | |||
| 501M | 626M | 752M | 1,002M |
| Hot Water Pump | |||
| Type | |||
| For hot water circulation | For hot water circulation | For hot water circulation | For hot water circulation |
| Power consumption(Kw) | |||
| 0.25 | 0.25 | 0.25 | 0.6 |
| Drain Pump | |||
| Type | |||
| Underwater for drainage | Underwater for drainage | Underwater for drainage | Underwater for drainage |
| Power consumption(Kw) | |||
| 1.50 | 1.50 | 1.50 | 1.50 |
| Cleaning the Pump | |||
| Type | |||
| For wastewater circulation | For wastewater circulation | For wastewater circulation | For wastewater circulation |
| Power consumption(Kw) | |||
| 1.50 | 1.50 | 1.50 | 1.50 |
| Waste Water Tank | |||
| Material | |||
| SMC heat retaining product | SMC heat retaining product | SMC heat retaining product | SMC heat retaining product |
| Volume(Ton) | |||
| 7.50 | 10.00 | 12.50 | 12.50 |
| Hot Water Pipe | |||
| Inlet/outlet(A) | |||
| 40 | 40 | 50 | 50 |
| Material | |||
| Bronze pipe | Bronze pipe | Bronze pipe | Bronze pipe |
| Cold Water Pipe | |||
| Inlet/outlet(A) | |||
| 40 | 50 | 65 | 65 |
| Material | |||
| PVC(VG1) | PVC(VG1) | PVC(VG1) | PVC(VG1) |
| Product Standard | |||
| Length(L) | |||
| 1,500 | 1,500 | 1,700 | 1,700 |
| Width(W) | |||
| 1,380 | 1,380 | 1,380 | 1,380 |
| High(H) | |||
| 800 | 800 | 1,000 | 1,000 |
| Power Product Standard | |||
| 380V 3-phrase 4-wire system 60Hz (3-phrase 3-wire system available upon request | |||
* The specifications of the above product may be changed without prior notice for the improvement of quality and performance.
