Air heat binary heat pump (for cooling and heater)
> Product Introduction > Air heat binary heat pump (for cooling and heater)
- What is the air heat binary heat pump (for cooling and heater)?
- It is an energy saving system that applies binary refrigeration cycle (cascade compression system), which uses 2 units of screw-type compressors, uses the heat source of the atmosphere that it is limit-free,
and is suitable for places using high temperature water because of the slight degradation at 15 degrees below zero temperature.

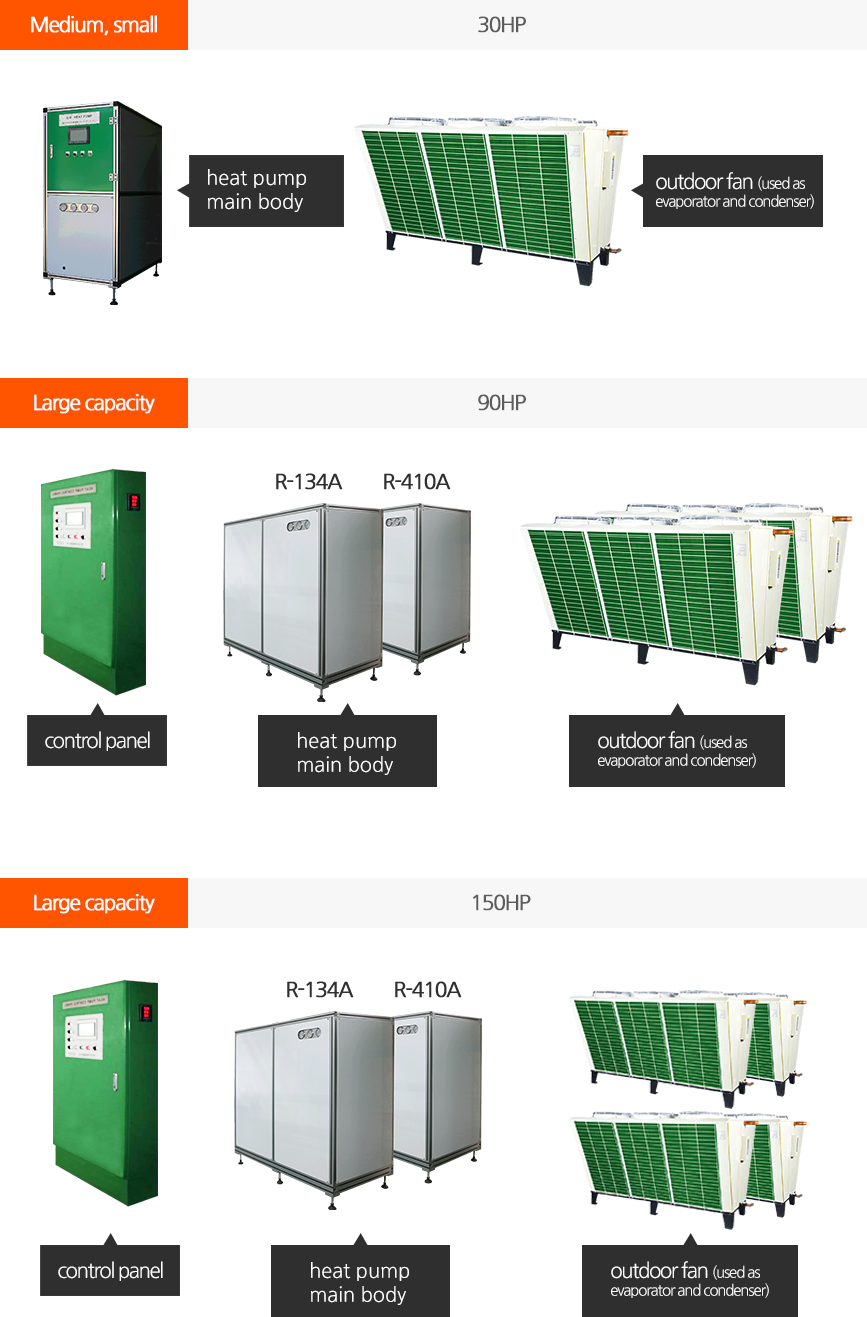

※ Medium, small 35 horsepower heat pump main body / outdoor fan (used as evaporator and condenser)

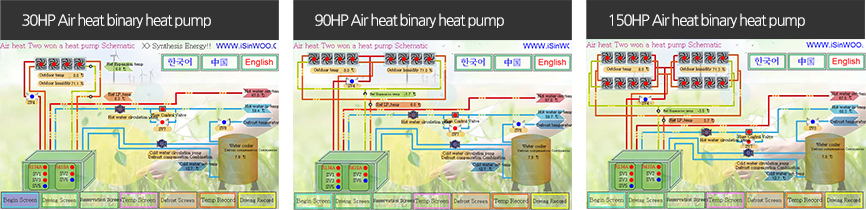

- System schematic diagram
system diagram -
- Product features
special features of goods -
- Latest technological know-how exclusive [Sinwoo Integral Energy]

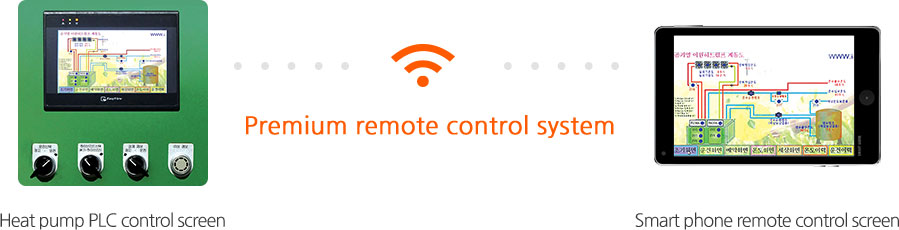

- Smart phone remote control management system is applied to all 2015 models
so you can monitor and check abnormal conditions in real time using smart phone anytime, anywhere.
Touch-type PLC auto control system that is convenient to use

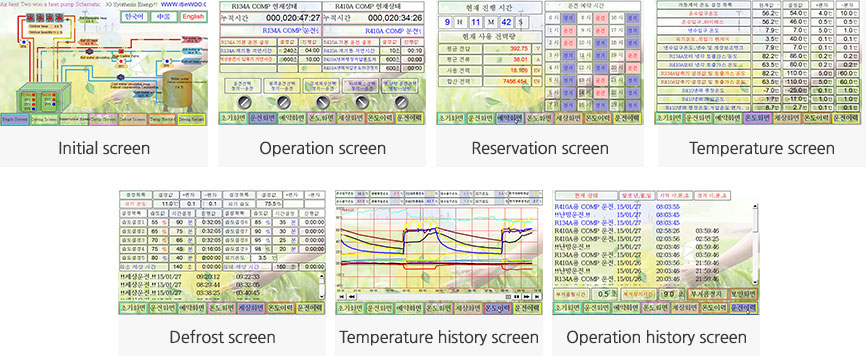

시스템화면 설명 ① Initial screen You can easily and accurately observe the operating condition of the equipment through the system schematic diagram. ② Operation screen You can control the operation and observe the operation condition. ③ Reservation screen You can set a time for reserved operation, and you can monitor wattage consumed in real time. ④ Temperature screen You can monitor and control predetermined value (deviation) and present value of auto control temperature setting list. ⑤ Defrost screen 9-phrase artificial intelligence auto defrosting according to the temperature and humidity is available. ⑥ Temperature history screen You can easily and accurately observe the changes of the equipment’s temperature in a graph. ⑦ Operation history screen Accurate inspection of equipment and taking measures are possible by managing the history on the operation condition and the occurrence of abnormality. - Invention patent exclusively for [Sinwoo Integral Energy]
-
- ① Invention patent for new technology no. 10-1262927"World's first" application of double heat exchanger for evaporator and condenser
- ② System reducing 50~80% energycontrasted with large absorptive cooling and heater system
- Patent for "World's first"double heat exchanger for evaporator and condenser
-

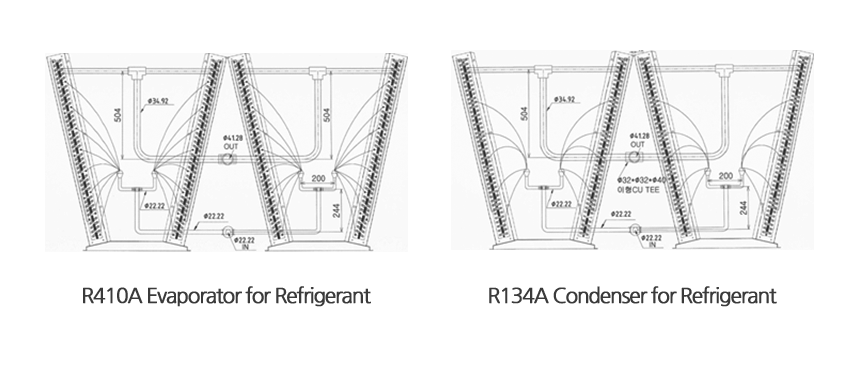

- ① "Double pipe heat exchanger" is constructed on the heat exchanger of the air, enabling the exchange of heat of high temperature and low temperature cycle, thus when heating high temperature R-134A, the defroster fully operates while when cooling, the condenser fully operates.
- - Binary refrigeration cycle heat pump for cooling and heating produces large capacity from 30HP up to 150 HP
- - Heating performance low temperature (-38℃) heating COP: feasible over 2.29
- - Temperature of out flowing water for low temperature (-38℃) heating: produces from 65℃ ~ 70℃
- - When cooling, cold water temperature is available up to -5℃ that thermal storage efficiency (contrast with existing single stage heat pump): above 20%
- Strengths of product
advantage - Heat Air Binary Heat Pump (For cooling and heating) has strengths as below.
For workplaces with the use of hot water in relation to the cooling system,
0% production cost of cold waterwhen cooling
-
- Suitable for workplaces with or without sufficient heat source such as
wastewater heat or geothermal energy
- Excellent economic feasibility with production of cooling/heating
and cold/hot water
-
- Performance superiority over 50% of cooling capacitycompared to binary
heat pump of other companies
- Improves cold water production capacity by doublecompared to binary
heat pump of other companies
-
- PLC auto control system and touch screenwhich are convenient to use
- Applied withsmart phone remote control management system
-
- Applied with 9-phrase artificial intelligence auto defrosting function
according to temperature/humidity
- Separate installation of outdoor fan reduces noise and prevents risk of freeze
and burst during winter season
- Applicability
a range of application - Air heat binary heat pump is applicable on following cases.
-
Recreation and leisure industry
- Bathhouse / Sauna
- Golf course
-
Accommodations
- Hotel / resorts
- Motel / pension
-
Industrial complex and industrial facilities
- Dye house
-
Public institution
- Hospital
- public office / school
| Classification | Exclusively for hot water and heating | For cold · hot water and cooling· heating | |||||
|---|---|---|---|---|---|---|---|
| SWA-1015S | SWA-2015S | SWA-1015SCH | SWA-2015SCH | SWA-4040SCH | SWA-8080SCH | ||
| Performance | Maximum heat value(kw) | 91.64 | 120.12 | 91.64 | 120.12 | 252.00 | 504.00 |
| Maximum heat value(Kcalℓ/hr) | 78,810 | 103,303 | 78,810 | 103,303 | 216,720 | 433,440 | |
| Minimum heat value(kw) | 47.58 | 62.36 | 47.58 | 62.36 | 145.80 | 291.60 | |
| Minimum heat value(Kcalℓ/hr) | 40,930 | 53,640 | 40,930 | 53,640 | 125,388 | 250,776 | |
| Compressor | Type | Enclosed scroll | Enclosed scroll | Enclosed scroll | Enclosed scroll | Half-enclosed screw | Half-enclosed screw |
| R410A(kw) | 8.63 | 11.25 | 8.63 | 11.25 | 30.00 | 60.00 | |
| R134A(kw) | 9.00 | 11.85 | 9.00 | 11.85 | 30.00 | 60.00 | |
| Maximum power consumption(kw) | 22.91 | 30.03 | 22.91 | 30.03 | 72.00 | 144.00 | |
| Minimum power consumption(kw) | 17.63 | 23.10 | 17.63 | 23.10 | 54.00 | 108.00 | |
| Air blower | Air volume | 600 | 800 | 600 | 800 | 800 | 800 |
| Size and quantity | 600 × 8P × 4EA | 800 × 8P × 4EA | 600 × 8P × 4EA | 800 × 8P × 4EA | 800 × 8P × 8EA | 800 × 8P × 16EA | |
| Motor and quantity | 0.2Kw × 4EA | 0.4Kw × 4EA | 0.2Kw × 4EA | 0.4Kw × 4EA | 0.4Kw × 8EA | 0.4Kw × 16EA | |
| Heat exchanger | Water side | Blazing plate type | Blazing plate type | Blazing plate type | Blazing plate type | Blazing plate type | Blazing plate type |
| Air side | Fin-Coil | Fin-Coil | Fin-Coil | Fin-Coil | Fin-Coil | Fin-Coil | |
| Connecting pipe | Hot water inlet side | 32A | 40A | 32A | 40A | 50A | 80A |
| Hot water outlet side | 32A | 40A | 32A | 40A | 50A | 80A | |
| Cold water inlet side | 40A | 50A | 50A | 100A | |||
| Cold water outlet side | 40A | 50A | 50A | 80A | |||
| Product size | Outdoor fan | 980 × 2,850 × 1,350 | 1,080 × 3,600 × 1,550 | 980 × 2,850 × 1,350 | 1,080 × 3,600 × 1,550 | 1,100 × 4,000 × 1,600 | 1,100 × 4,000 × 1,600 |
| Main body | 700 × 1,300 × 1,500 | 700 × 1,300 × 1,500 | 700 × 1,300 × 1,500 | 800 × 1,380 × 1,500 | 800 × 1,380 × 1,500 × 2EA | 800 × 1,380 × 1,500 × 4EA | |
| Power | 3HP × 4W × 380V × 60Hz | ||||||
* The specifications of the above product may be changed without prior notice for the improvement of quality and performance.
